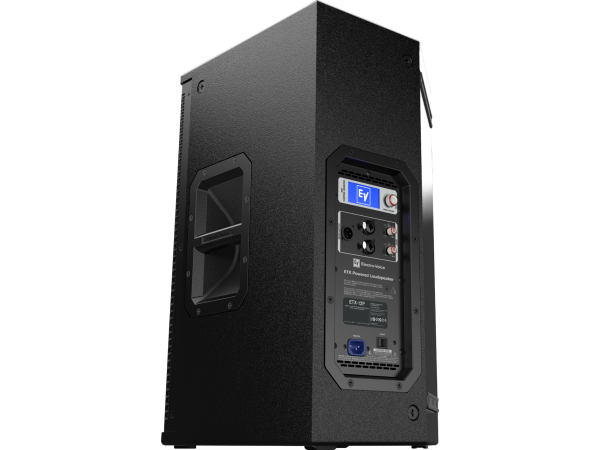

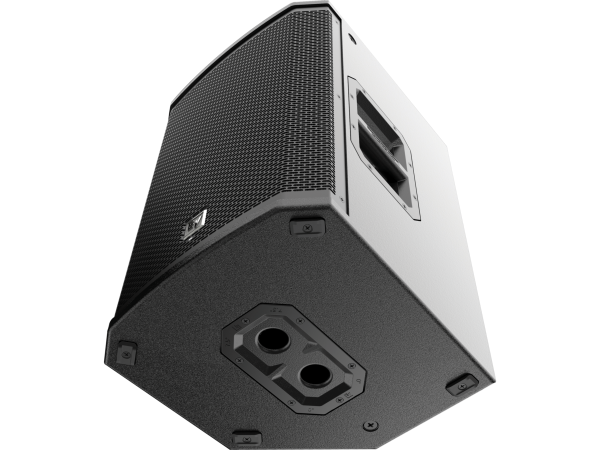

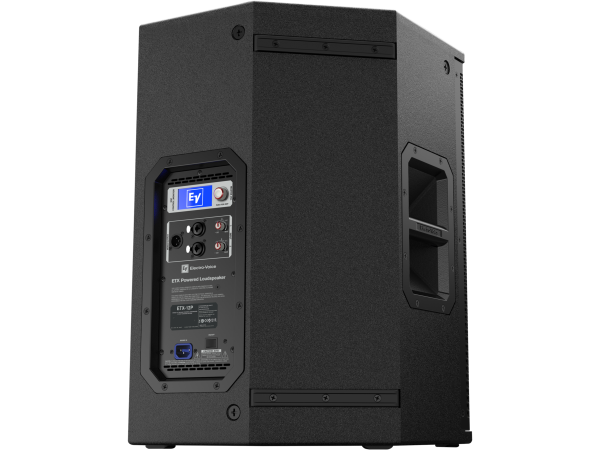

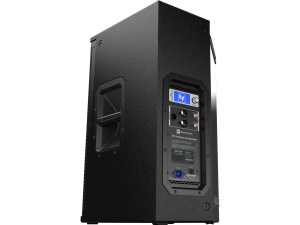

Electro Voice – ETX12P Aktív hangfal
12-inch LF SMX woofer
1.25-inch HF titanium kompressziós driver
2000 W Class-D erősítő integrált FIR-Drive DSP
Max SPL 135 dB
Típus | 1. Aktív Top |
Frequency Response (-3 dB) | 55 Hz – 20 kHz1 |
Frequency Range (-10 dB) | 43 Hz – 20 kHz1 |
Maximum SPL | 135 dB peak2 |
Coverage (H x V) | 90° x 60° |
Power Rating | 2000 WLF |
Transducer | SMX2100 300 mm (12 in) |
HF Transducer | DH3-B 1.25-in titanium compression driver |
Crossover Frequency | 1600 HzConnectors: |
Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
Enclosure | 18 mm, 13-ply birch plywood with EVCoat |
Grille | 16AWG steel with powder coat |
Suspension | (8) M10 suspension points |
Dimensions (H x W x D) | 613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in) |
Net Weight | 23.6 kg (52.0 lb) |
Shipping Weight | 26.8 kg (59.1 lb) |
Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3 |
